Haier Maglev

The Hair Maglev chiller is an oil free centrifugal chiller

The unit adopts the turbo inverter compressor technology and frictionless technology, which will enhance the energy efficiency of the system. This compressor is high efficient environment friendly refrigerant of R134A. The unit uses magnetic levitation technology, which means there is no friction in the system so no oil is needed. No oil in chiller means no oil fouling and contamination over time, thereby lowering preventive maintenance costs.

Heat Exchangers

AHU - LNX Cool Running System

Our AHU are designed with main points in mind:

Global Standards, Economic and Fully Customizable.


  • Structure of the unit is formed by using fully extruded aluminum framing, which makes it durable and lightweight.
  • Steel sheet panels are Double-Walled construction with PU Thermal Insulation injected in between. This forms a strong and rigid casing for the AHU.
  • It has specially fabricated Nylon Composite connectors to make joints more durable and rust-free.
AHU

Parts of the AHU

1. Coil Section

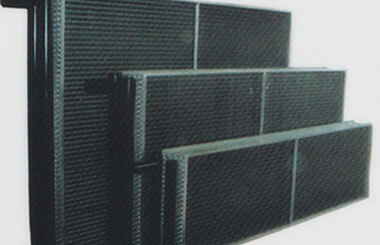

Cooling Coils

  • Designed to meet air-conditioning needed in commercial and industrial applications . Coils are encased in G.I. sheet with back-plates and coverplates welded to ensure rigid and strong casing.
  • Designed using computer aided software to comply to AHRI standards.
  • Chiled water coil, Direct-Expansion Coils or Hot Water Coils are manufactured from copper tubes with specially processed aluminum fins.
AHU

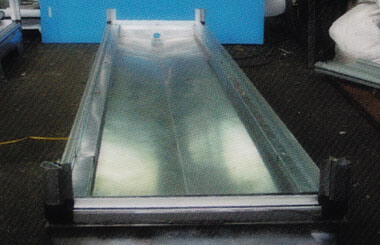

Drain Sump

  • All units are provide with specially designed sump for better drainage and avoid flooding inside the AHU.
  • All drain sump are coated with special materials to resist corrosion.
AHU

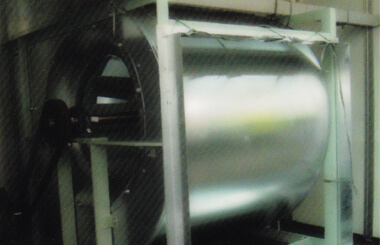

2. Blower Section

  • Modular section which houses the Fan/Blowers.
  • LNX Cool Running Systems uses high quality blowers. Fan/Blower models are designed and selected so that the AHU can deliver the required amount of air at the most efficient motor capacities. Blowers also come equipped with vibration isolators so that AHU can run smoothly and quietly.
AHU

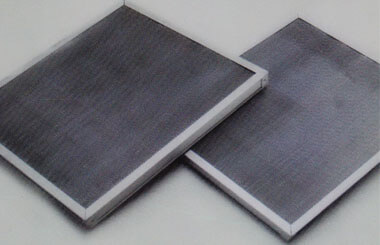

3. Filter Section

  • Cool Running Systems comes equipped with standard washable type pre-filters while the section is designed with filter racks so that the filter media are easily accessible, making it easier for maintenance.
  • Pre-filter media, filter bags and even HEPA filter medi are available as an option for special applications like clean rooms, hospitals and etc.
AHU

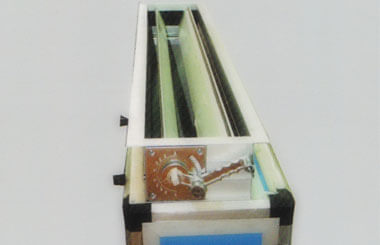

4. Mixing Box

  • Additional Mixing Box Modular Section can also be fabricated in applications that would require them. The mixing box is an air-tight module that is equipped with fresh-air and return-air dampers.
AHU

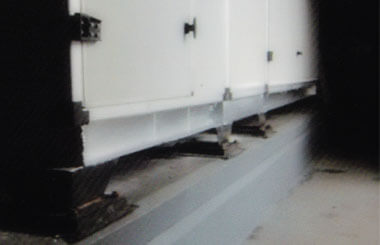

5. Equipment Base

  • LNX - Cool Running Systems comes with specially designed durable equipment base. Equipment base is made out of galvanized iron channel bars forming a rigid base frame for the whole unit, making our AHUs resistant to corrosion.
AHU

Specs

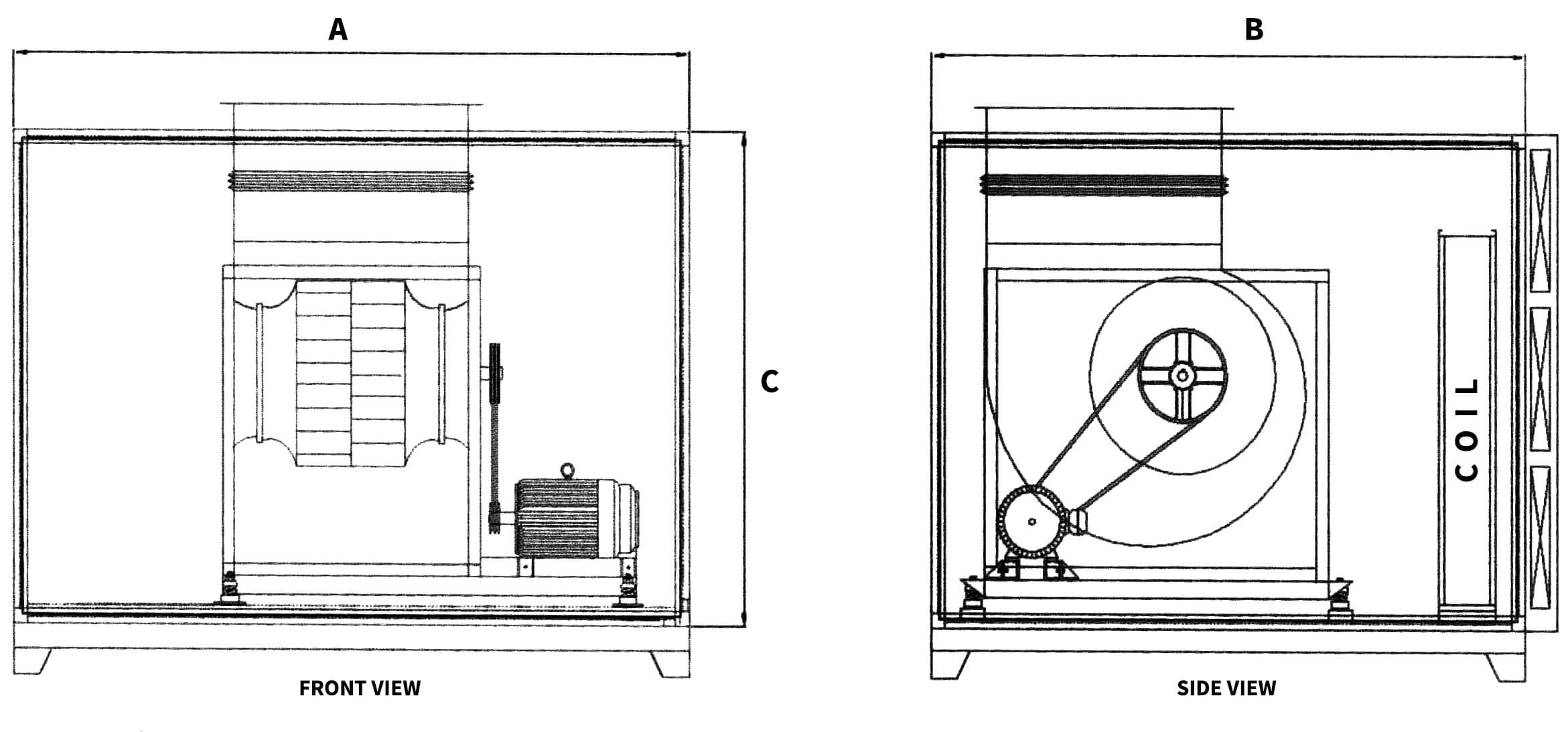

Horizontal Cabinet Type

Unit Nominal
Capacity
Airflow Blower Size Coil Specification w/ Estimated Dry coil weight UNIT SIZE mm
MODEL TR CFM BC FC FA (SQ FT) CU Tube Rows* FPI** Weight A B C D
LNX-H40 10 4000 BC-355 FC-355 12 FT2 5/8" ø 4R 10FPI 83 Kg 1800 1700 1000 50
LNX-H80 20 8000 BC-450 FC-450 16 FT2 5/8" ø 4R 10FPI 92 Kg 1900 2100 1400 50
LNX-H120 30 12000 BC-560 FC-560 24 FT2 5/8" ø 4R 10FPI 134 Kg 2300 2400 1700 50
LNX-H160 40 16000 BC-630 FC-630 32 FT2 5/8" ø 4R 10FPI 179 Kg 2400 2800 1700 50
LNX-H200 50 20000 BC-800 FC-800 40 FT2 5/8" ø 4R 10FPI 224 Kg 2540 2900 2100 50
LNX-H240 60 24000 BC-800 FC-800 48 FT2 5/8" ø 4R 10FPI 269 Kg 2540 2900 2100 50
LNX-H280 70 28000 BC-900 FC-900 56 FT2 5/8" ø 4R 10FPI 313 Kg 3000 3400 2500 50
LNX-V320 80 32000 BC-900 FC-900 64 FT2 5/8" ø 4R 10FPI 358 Kg 3000 3400 2500 50
LNX-V360 90 36000 BC-1000 FC-1000 72 FT2 5/8" ø 4R 10FPI 403 Kg 3000 3400 2600 50

Coil Data

Description Chilled Water
FACE VELOCITY, FPM (m/s) 350 - 800
EDB; °F(°C) 65 - 95 (18 - 35)
EWB; °F(°C) 40 - 50 (5 - 10)
LWT; °F(°C) 50 - 60 (10 - 16)
* Additional Rows of Coil shall be available upon customers request.
** Coil with 12 FPI or 14 FPI shall be available upon customers request.

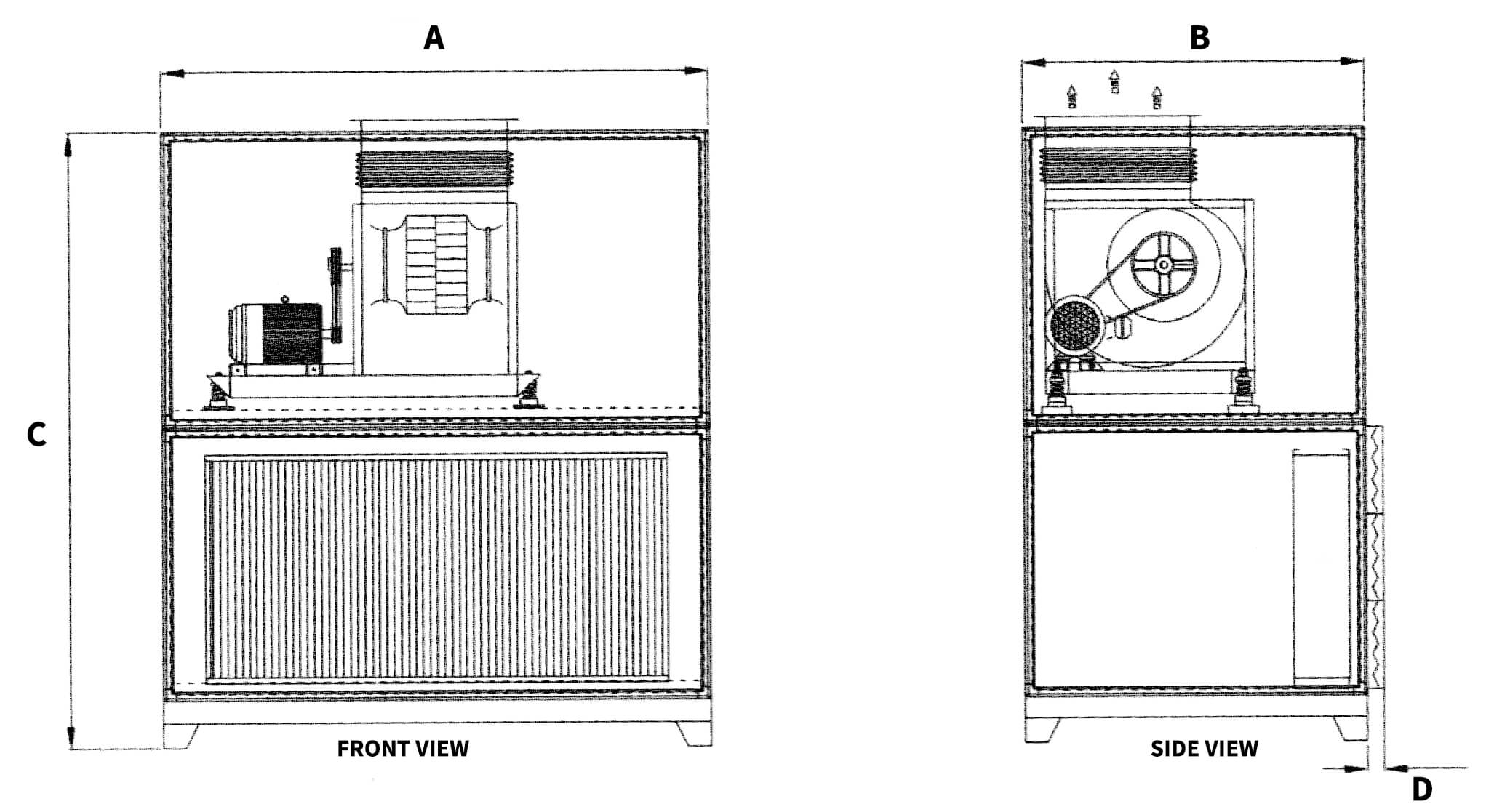

Vertical Cabinet Type

Unit Nominal
Capacity
Airflow Blower Size Coil Specification w/ Estimated Dry coil weight UNIT SIZE mm
MODEL TR CFM BC FC FA (SQ FT) CU Tube Rows* FPI** Weight A B C D
LNX-V40 10 10 BC-355 FC-355 12 FT2 5/8" ø 4R 10FPI 83 Kg 1800 1200 2000 50
LNX-V80 20 8000 BC-450 FC-450 16 FT2 5/8" ø 4R 10FPI 92 Kg 2200 1400 2400 50
LNX-V120 30 12000 BC-630 FC-560 24 FT2 5/8" ø 4R 10FPI 134.4 Kg 2500 1600 2900 50
LNX-V160 40 16000 BC-630 FC-630 32 FT2 5/8" ø 4R 10FPI 179 Kg 3200 1600 3000 50
LNX-V200 50 20000 BC-800 FC-800 40 FT2 5/8" ø 4R 10FPI 224 Kg 3000 2000 3600 50
LNX-V240 60 24000 BC-800 FC-800 48 FT2 5/8" ø 4R 10FPI 269 Kg 3600 2000 3600 50
LNX-V280 70 28000 BC-900 FC-900 56 FT2 5/8" ø 4R 10FPI 313 Kg 3600 2200 4000 50
LNX-V320 80 32000 BC-900 FC-900 64 FT2 5/8" ø 4R 10FPI 358 Kg 3600 2200 4200 50
LNX-V360 90 36000 BC-1000 FC-1000 72 FT2 5/8" ø 4R 10FPI 403 Kg 3600 2200 4500 50

Coil Data

Description Chilled Water
FACE VELOCITY, FPM (m/s) 350 - 800
EDB; °F(°C) 65 - 95 (18 - 35)
EWB; °F(°C) 40 - 50 (5 - 10)
LWT; °F(°C) 50 - 60 (10 - 16)
* Additional Rows of Coil shall be available upon customers request.
** Coil with 12 FPI or 14 FPI shall be available upon customers request.

Heat Exchangers

Coil Type Heat Exchangers

Fabricated using round copper tubes and fins with fabricated back-plate and metal casing, these heat exchangers can reject heat, at an ambient temperature of 36°C - 42°C, up to 5MW. For harsh environment, special fabrications using copper fins or blue-coated aluminum fins are also accepted.

Heat Exchangers

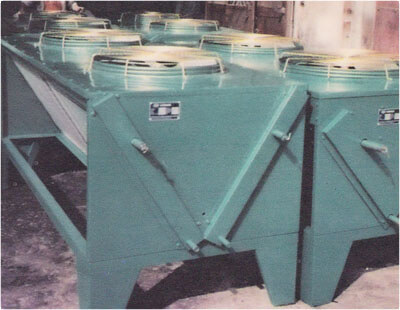

Air Cooled Condensing Unit

ACCU - 1/2" diameter copper tubes, at 40°F suction, 120°F condensing temperatures, 95°F ambient temperature with 1000 CFM and 15000 BTUH heat rejection per TR capacity.

Capacity ranges from 2 up to 120(TR) tons refrigeration, using refrigerants. We also supply ACCU units, using refrigerants for special applications with the same capacity range.

Heat Exchangers

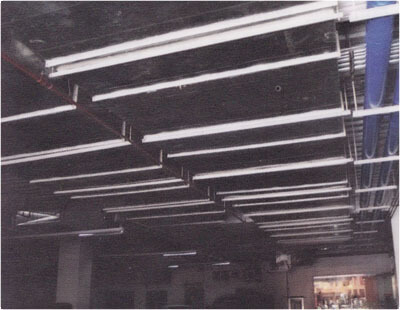

Duct Works

A/C duct is made out of G.I. sheet, complete with SMACNA standard insulation, angular support, duct hangers, anchor bolts, corner beads, duct complete with snap hook, using 10oz vinyl polyester, including hardware equipment such as turnbuckles, cable clamps and wire ropes. Our service includes leak testing, observation and commissioning of the system.

Heat Exchangers

Lennox PU Duct Systems Technical Specifications:

General Characteristics:

Panels are made of rigid expanded polyurethane composite material covered on both faces with embossed aluminum sheet, suitable for the construction of ducts in air-conditioning, heating ad ventilating systems.


Sizes and Weight:

The standard thickness is 20.3mm, with tolerance of +/- 0.4 mm. The panel weighs 1.4kgs/sqm; the weight of finished duct may differ depending on the number of joints needed. On average a finished duct weighs at around 1.9kg/s m.sq. The standard width of a panel is 1.2 meters, with tolerance of +/- 4mm.


Chemical-Physical Properties:

Insulating material: the expanded polyurethane rigid foam, of which the panel is made, is due to a chemical reaction between its principal components (polyols and isocyanates) combined in proper quatities with no other special additives. The density of expanded PU is 48kg/cu. m. with tolerance of +/- 2kgs./ cu.m. Both sides are covered in aluminum sheets with thickness of 80 microns.


Resistance to Compression:

The resistance to compression is 2.4 kg/sqm.


Thermal Conductivity:

Thanks to the high number of closed cells (more than 95%), the coefficient of thermal conductivity in accordance to UNI 7745/77 is 0.0195 W/m.K, at the temperature of +15°C.


Fire Retardant Properties:

According to Italian Fire Regulations, these panels have been classified as belonging to Class 0-2 (DM 26/06/84). The Fire testing has been carried out according to CSE RF 3/77 and CSE RF2/75A. According to British Standard 476 part 6 and 7, the panel achieved Class 0 (zero).


Temperatures:

The temperatures to which these ducts might be exposed range from -80 to +80°C. Under these temperatures there is no record of, any alteration in the product insulating performance nor the panel characteristics.


Pressure inside the ducts:

Lennox PU Duct Sytems can be used in plants where the maximum pressure is 1500 Pascals. The resistance of these ducst to pressure depends on the duct size and on the number of joints. We advise to strictly follow the suggestions in the technical card regarding the technical standards for the construction of ducts.


Joint System:

The joining of the different parts of the ducts is made through particular aluminum profiles, which thanks to their shape enable a very easy and quick assembling of ducts. The profiles are fixed to the ducts through.

Joint System:

The joining of the different parts of the ducts is made through particular aluminum profiles, which thanks to their shape enable a very easy and quick assembling of ducts. The profiles are fixed to the ducts through special adhesive glue. In order to avoid air losses from the joints it is necessary to use an adhesive rubber gasket, which is then put inside every joint. In order to avoid any problems in assembling the ducts, it is suggested not to use systems of joining other than the Lennox PU Duct System.


Air Losses

The particular system of joining the ducting guarantees excellent performance as regards to air losses. The ENGLISH LEAKING TEST (DW 142) classifies the ducts in relation to the pressure they are put through and to the amount of air they lose.


CLASS A: Maximum air losses allowed: 1.53 Lps/sqm. at pressures of 500 Pascal.


CLASS B: Maximum air losses allowed: 0.80 Lps/sqm. at pressures of 500 Pascal.


CLASS C: Maximum air losses allowed: 0.42 Lps/sqm. at pressures of 2,000 Pascal.


Lennox PU Ducting is classified as Class A; however, the maximum pressure, which it can withstand, is 1500 Pascal.


Air Speed:

These ducts can be used in applications where the air speed reaches 20/22 m/s.


Hanging and Anchorages:

Right ducts reach the maximum length of 4 m. The anchorages, too, may be put at a distance of 4 m. between them. As it regards curves and particulary pieces which are assembled through aluminum profiles, we do suggest not to exceed 3 m. between the anchorages.


Water and Chemical Resistance:

Our ducts may be washed and exposed to rain without any alteration in the duct characteristics. The behavior of the duct to oxidation is the same behavior of aluminum. The ducts must not be used in plants where solid material (rejects, etc.) and air with acids and corrosive solvents are contained.

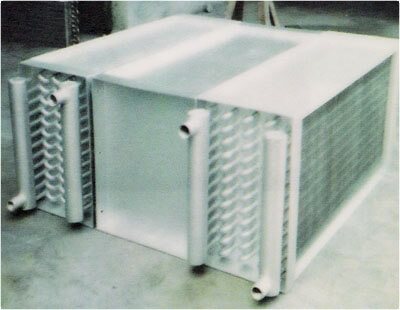

Steam Coil

Another variety of coil used for heat generating equipment, this coil is better known as steam coil.

This coils is preferred mostly by luandry industries, other industrial purposes are heating, drying and dehumidifying applications.

Steam coils sizes are specified mostly by the clients depending on steam required.

Coil specifications and sizes vary from 100 to 400 pounds for laundry requirements.

Heat Exchangers

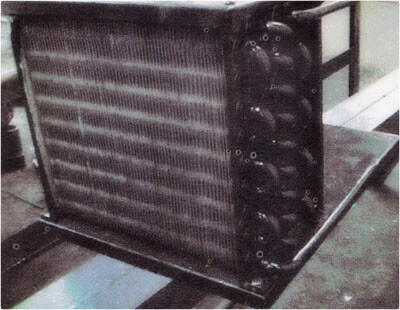

Condenser Coil

Air-Cooled Condenser Coil - Manufactured base on 95°F ambient, 120°F condensing and 40°F suction temperatures, using R-22 as refrigerant, sizes and capacities ranges from 2TR - 120TR (Tons of refrigeration).

Coils are carefully leak tested at 350 PSIG with nitrogen gas and sealed.

Heat Exchangers
